Immunology

Point of care in Cardiac Emergency
Result in 8-10 min.


Quidel Triage MeterPro

Quidel Triage MeterPro is designed to provide diagnostic results quickly and easily. With a variety of immunoassays and the ability to use whole blood, plasma, or urine, the Quidel Triage MeterPro gives you a flexible solution at the point-of-care.

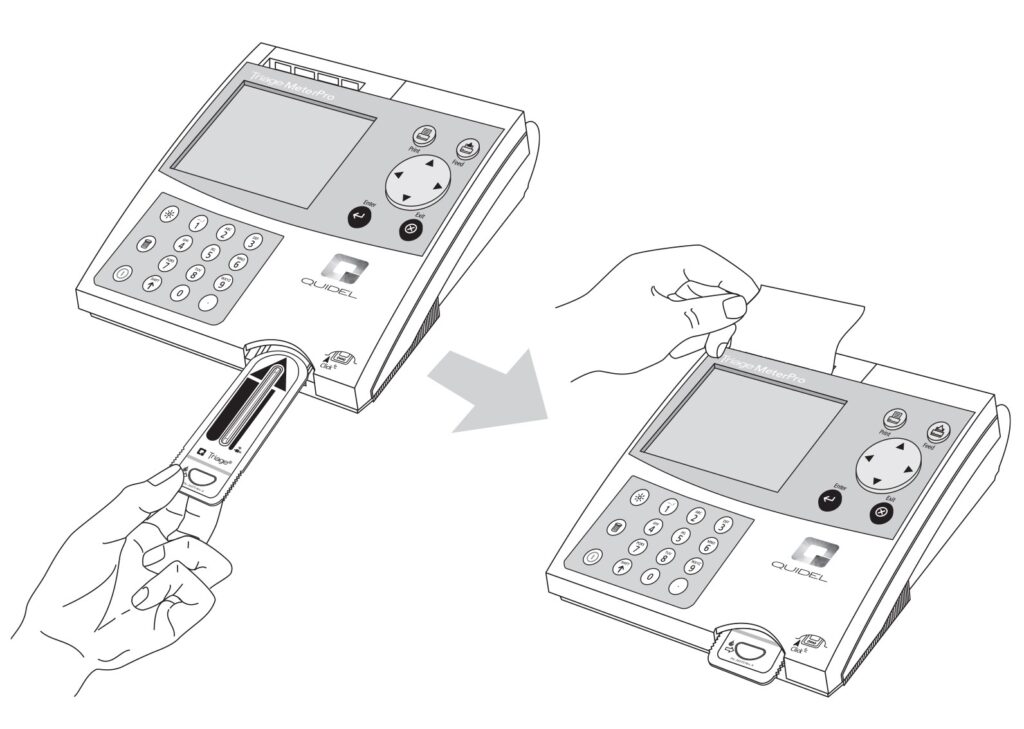

The platform is as easy as 1, 2, 3:

  1. Add sample to the device using the transfer pipette included in each kit.
  2. Insert the device into the meter.
  3. Read results on display panel or print directly from meter. Results are highlighted when above the cut-off. Qualitative results are displayed as positive (POS) or negative (NEG) eliminating the need for interpretation.

Test Principle

The Quidel Triage MeterPro uses a laser as a light source. Light from the laser hits a test device that has been inserted in the meter. This causes the fluorescent dye in the test device to give off energy.

The more energy the fluorescent dye gives off, the stronger the signal.

Overview: Running a Test

After a test sample (for example, blood) from a patient is added to the test device, the test device is inserted in the Quidel Triage MeterPro. The meter measures how much of the substance (a particular protein marker) is present, based on standards that have been pre-programmed into the meter. The patient identification, the User I.D. and the test results can be printed out on a paper tape.

In addition to testing samples from patients, the Quidel Triage MeterPro contains pre-programmed Quality Control (QC) functions that allow the person operating the meter to monitor quality control.

NOTE: The Quidel Triage MeterPro accepts test devices that are designed specifically for use with the Quidel Triage MeterPro. Please refer to product-specific Package Inserts included in each test kit for more information.

Unpacking

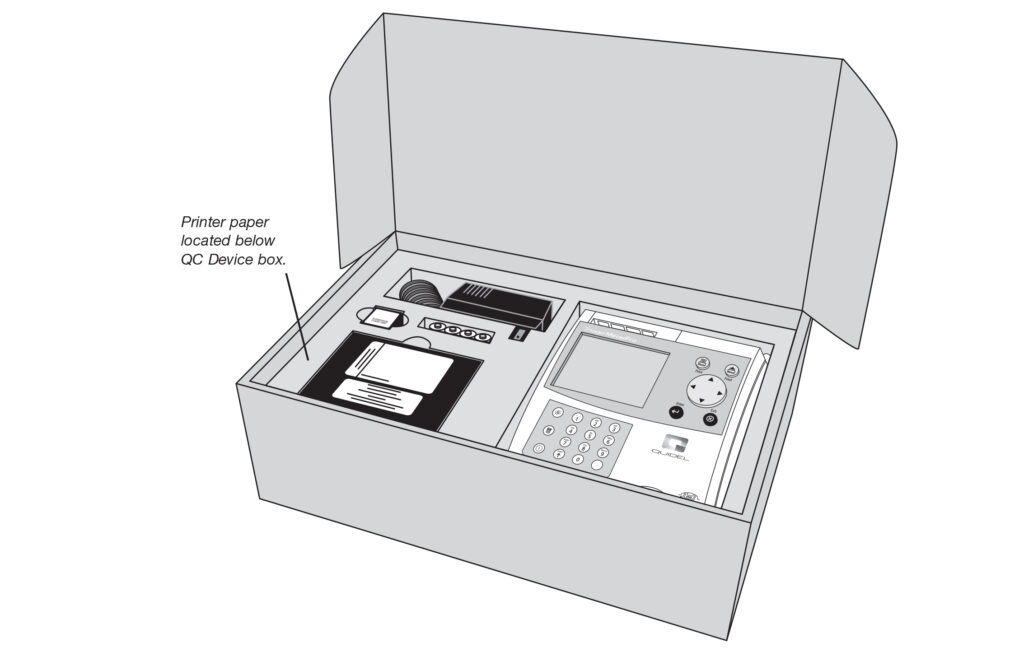

The Quidel Triage MeterPro and the items that come with it are provided in a single box. Quidel Triage test devices are packaged separately and include instructions for running specific tests. If you have any questions, contact
Quidel support(refer to the Assistance section).

Contents

•  Quidel Triage MeterPro
•  QC Device and CODE CHIP module (in the QC Device box)
•  AC / DC Power Converter
•  4 AA Batteries
•  4 Rolls of Printer Paper (additional rolls are supplied in each box of test devices)
•  Supervisor CODE CHIP module and CODE CHIP module Box

Materials Required But Not Provided

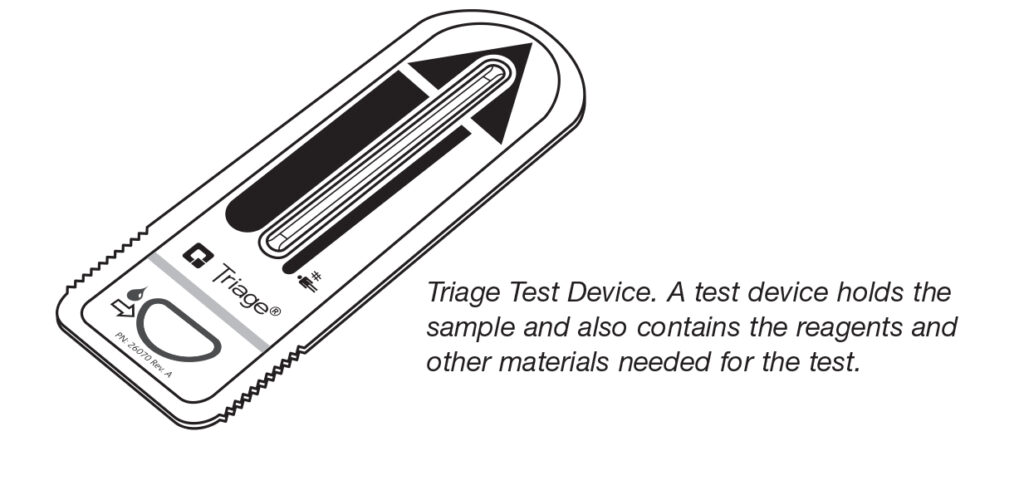

•  Quidel Triage Test Device

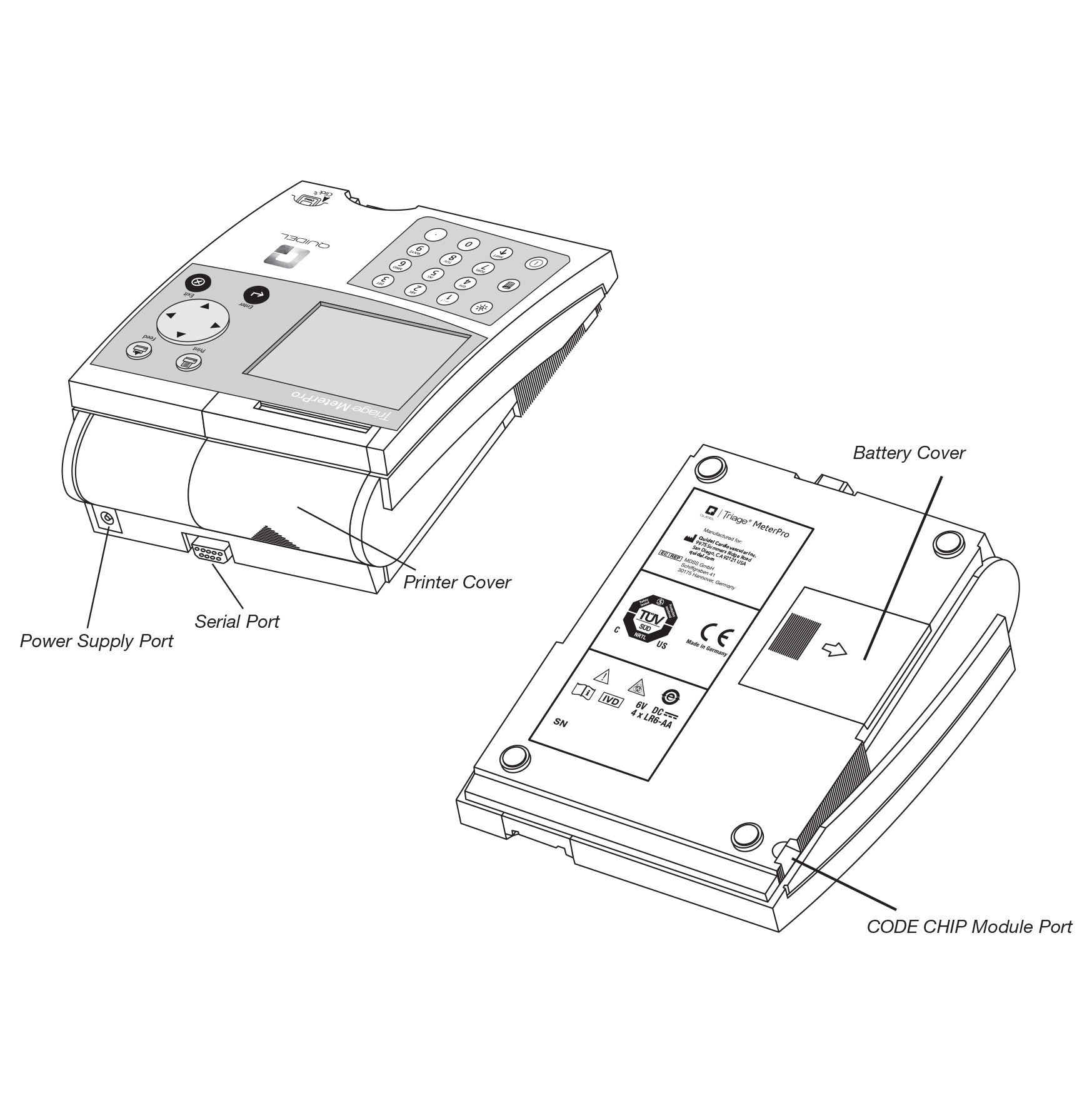

Parts of the Quidel Triage MeterPro
